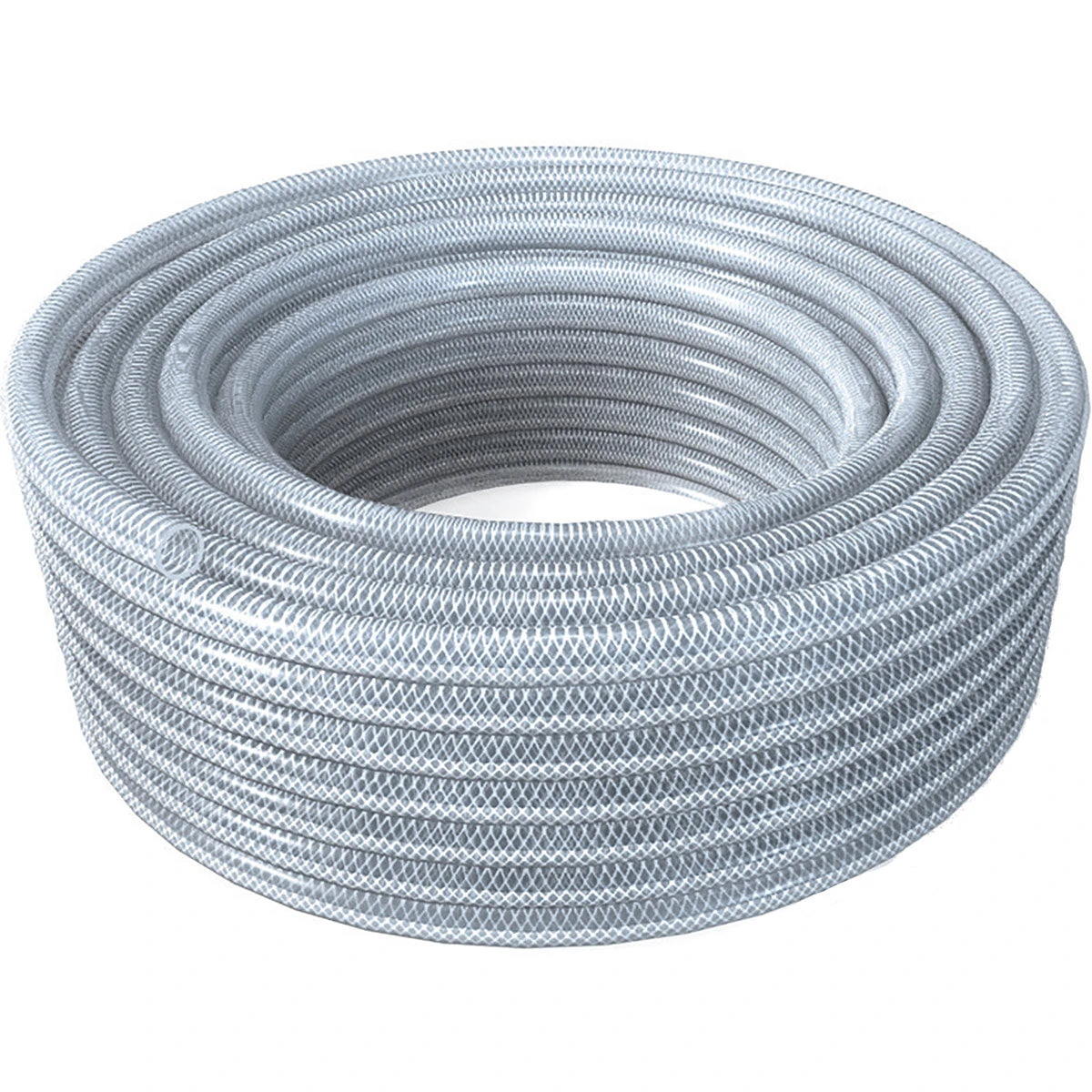

Clear Braid-Reinforced PVC Hose 38mm ID/46mm OD (11bar)

Features:

• • Multipurpose hose particularly suited to use with compressed air for pneumatic tools, as well as non-fatty foodstuffs and light alcohols
• • Manufactured using DEHP-free PVC making it non-toxic and suitable for food use
• • Simulants tested to A, B, C
• • Resistant to crushing, abrasion and UV
• • Smooth bore ensures optimum flow
• • Transparent wall allows easy identification of contents and enables users to locate blockages
• • Good resistance to a wide range of chemicals
• • Please note this hose is not suitable for use with solvents
• • Temperature range: -15°C to 60°C
• • Marking: ID ø x OD ø / ø ID x th. (EU) No. 10/2011 Sim. A, B, C [batch number]

Specification:

• EU Regulation 10/2011 – true
• Reach Approved – false
• WRAS Approved – false
• External Hose Colour – Clear
• External Hose Colour Options – Clear
• Internal Hose Colour – Clear
• Anti-Static Compound – false
• Anti-Static Wire – false
• Crush Resistant – false
• Delivery – true
• FDA approved – false
• Phthalate Free – true
• Smooth Bore – true
• Suction – false
• Vacuum (mmHG) – 0
• Outer Finish Type – Smooth
• Cover Material – PVC
• Lining Material – PVC
• Reinforcement Material – Textile
• Burst Pressure (BAR) – 40
• Burst Pressure (PSI) – 580
• Working Pressure (BAR) – 13
• Working Pressure (PSI) – 188
• Bend Radius (mm) – 50
• External Diameter (mm) – 11
• Internal Diameter (mm) – 6.3
• Internal Diameter (mm) Options – 6.3
• Max Temperature (ºC): 60
• Min Temperature (ºC): -15
• Weight (kg/m) – 0.077
